全志V853芯片介绍

v853chip

【全志V853-高性能边缘AI视觉处理芯片】

V853 是一颗面向智能视觉领域推出的新一代高性能、低功耗的处理器SOC,可广泛用于智能门锁、智能考勤门禁、网络摄像头、行车记录仪、智能台灯等智能化升级相关行业。

V853 集成Arm Cortex-A7和RISC-V E907 双CPU,内置最大 1T 算力 NPU,使用全志自研 Smart 视频引擎,最大支持5M@25fps H.265编码和5M@25fps H.264编解码,同时集成高性能 ISP 图像处理器,可为客户提供专业级图像质量。V853 还支持 16-bit DDR3/DDR3L,满足各类产品高带宽需求;支持 4lane MIPI-CSI/DVP/MIPI-DSI/RGB 等丰富的专用视频输入输出接口,满足各类AI视觉产品需求;采用先进的22nm工艺,具有更优的功耗和更小的芯片面积。

同时,全志为 V853 配套提供了稳定、易用的 Linux SDK和软硬件参考设计,可以帮助客户快速实现产品量产。

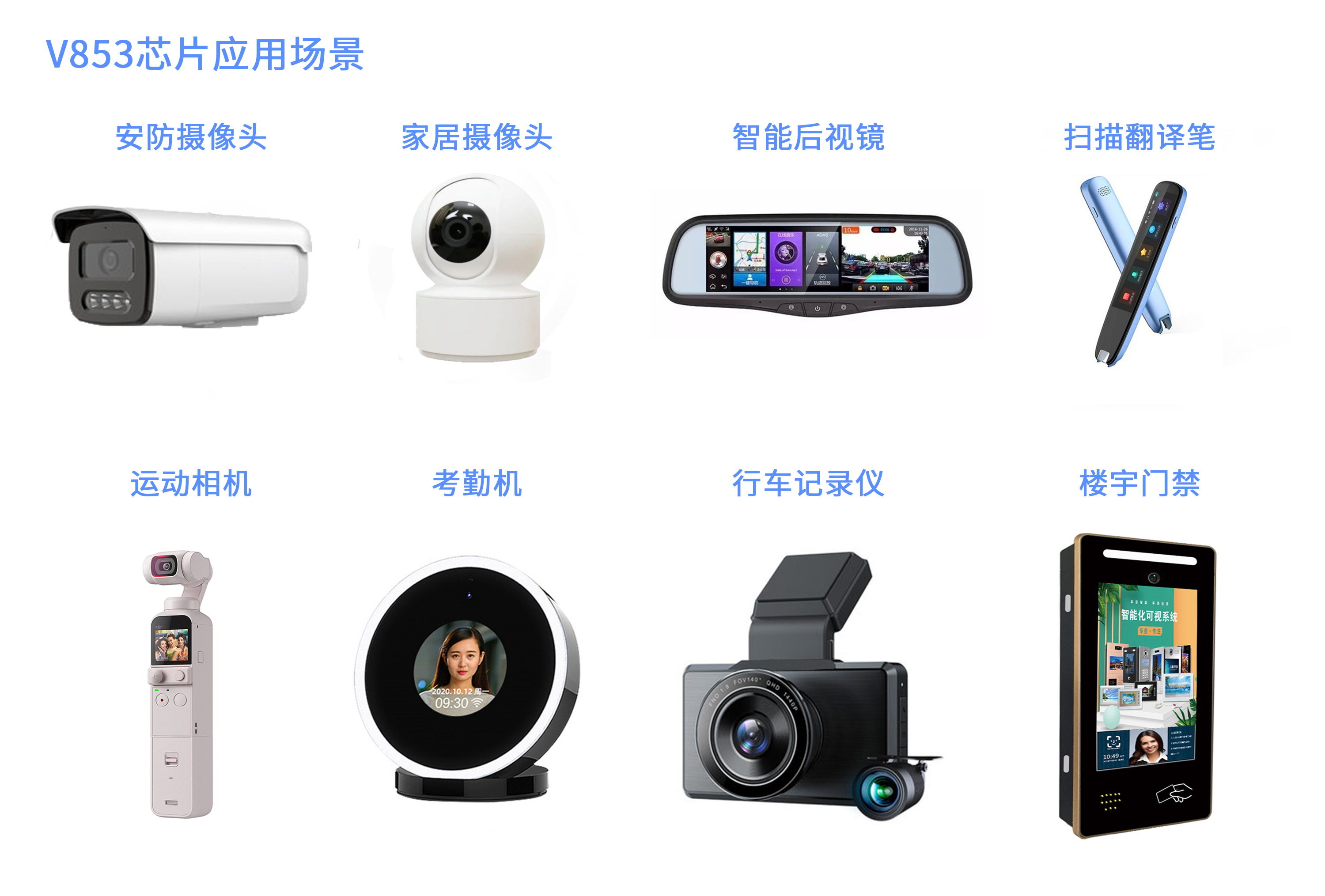

V853芯片应用场景:

image-20220601152708483

芯片框图

D1-H芯片框图

参数规格

CPU

Arm Cortex-A7@1GHz
32 KB I-cache, 32 KB D-cache
128 KB L2 cache
RISC-V E907@600MHz
16 KB I-cache, 16 KB D-cache

NPU

Maximum perormance up to 1 Tops
Emdedded 128KB internal buffer
Supports deep learning frameworks: TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, and so on

Memory

16-bit DDR3/DDR3L SDRAM, supporting maximum capacity of 1GB
SD3.0/eMMC 5.1 interface
Supports SPI Nor/SPI Nand Flash

Video Engine

Video encoder
    - H.264/H.265 up to 4K@15fps or 5M@25fps
     - JPEG up tp 1080p@60fps

Video decoder
    - Supports H.264 BP/MP/HP, JPEG
    - Real-time multiple streams H.264 encoding capability: 5M@25fps
    - JPEG snapshot performance of 1080P@60fps independently

Display Engine

Allwinner SmartColor post processing for an excellent display experience
Supports 2 video channels and 1 UI channel
Supports G2D hardware accelerator including rotate, mixer, scaler functionns

Video Input

ISP
    - Maxumum performance of 5M@30fps and maximum resolution of 3072 * 1772
    - Adjustable 3A functions (AE, AWB, AF), and 3A parameters are adjustable
    - Provides ISP tuning tools for the PC
VIPP
    - Four VIPP YUV422 or YUV420 outputs
    - Maximum performance of 5M@30fps, maximum resolution of 3072 * 1772
8-/10-/12-/16-bit parallel CSI interface
    - Supports digital camera (DC), BT.601, BT.656, BT.1120 protocol
    - Maximum video capture resolution up to 5M@30fps
4-lane MIPI CSI interface
    - Supports DOL WDR mode and splitting into 2*2-lane MIPI CSI
    - Supperts 4-ch VC de-interleaver function
    - Maximum video caputure resolution up to 5M@30fps

Video Out

RGB LCD output interface up to 1920 x 1080@60fps
4-lane MIPI DSI interface up to 1920 x 1080@60fps

Audio

1 DAC and 2 ADCs
Analog audio interfaces: MICIN1P/N, MICIN2P/N, LINEOUTRP/N
Digital audio interfaces: I2S/PCM *2 , DMIC

Security System

AES, DES, 3DES encryption and decryption algorithms
RSA/ECC signature verigication algorithm
MD5/SHA and HMAC tamper proofing
PRNG/TRRNG hardware random number generator
Integrated 2Kbits OTP storage space

Connectivity

USB2.0 DRD, SDIO 3.0, SPI *4, UART * 4, TWI * 5, WIEGAND
PWM (12-ch), GPADC (4-ch)
10/100/1000M EMAC with RMII and RGMII interfaces

Package

LFBGA 318, 12mm * 12 mm, 0.5mm ball pitch

Chip process

22nm

不同版本芯片的区别

V85x 共有 V851s、V851se、V853s、V853 四个型号,规格类似,都是针对AI视觉、高清编码推出的芯片,主要应该在带camera的产品上,规格、性能略有差别,可以根据实际产品的应用形态选择。

各型号具体配置差异如下表:

型号 V851s V851se V853s V853
NPU 0.5T 0.5T 0.8T 1T
DDR 内置64M DDR2 内置64M DDR2 内置128M DDR3 外置最高1G DDR3/DDR3L
H264编码 5M@20fps,4M@30fps 5M@20fps,4M@30fps 5M@25fps,4M@30fps 5M@25fps,4M@30fps
H256编码 5M@20fps,4M@30fps 5M@20fps,4M@30fps 5M@25fps,4M@30fps 5M@25fps,4M@30fps
ISP性能 4M 4M 5M 5M
视频输出 sRGB 8bit, MIPI 2lane RGB888, MIPI 4lane RGB888, MIPI 4lane
视频输入 DVP10Bit, MIPI CSI 4lane DVP10Bit, MIPI CSI 4lane DVP12Bit, MIPI CSI 4lane DVP12Bit, MIPI CSI 4lane
分辨率 4M@30fps 4M@30fps 5M@30fps 5M@30fps
封装 QFN88 QFN88 BGA318 BGA318
备注 V851se内置百兆以太网,复用了显示输出,无法连接显示屏(可以使用SPI,IIC显示屏) 引脚封装完全一致,V853换V853s仅需摘除V853的外置内存即可(V853s的内存线是GND)
