Allwinner V853 SoC

v853chip

[Allwinner V853-High-performance edge AI vision processing chip]

V853 is a new generation of high-performance, low-power processor SOC launched for the field of intelligent vision. It can be widely used in intelligent upgrade related industries such as intelligent door locks, intelligent attendance access control, network cameras, driving recorders, and intelligent desk lamps. .

V853 integrates Arm Cortex-A7 and RISC-V E907 dual CPU, built-in maximum 1T computing power NPU, uses Allwinner's self-developed Smart video engine, supports up to 5M@25fps H.265 encoding and 5M@25fps H.264 encoding and decoding, and at the same time Integrated high-performance ISP image processor to provide customers with professional-level image quality. V853 also supports 16-bit DDR3/DDR3L to meet the high bandwidth requirements of various products; supports 4lane MIPI-CSI/DVP/MIPI-DSI/RGB and other rich dedicated video input and output interfaces to meet the needs of various AI vision products; advanced The 22nm process has better power consumption and smaller chip area.

At the same time, Allwinner provides a stable and easy-to-use Linux SDK and hardware and software reference designs for the V853, which can help customers quickly achieve mass production.

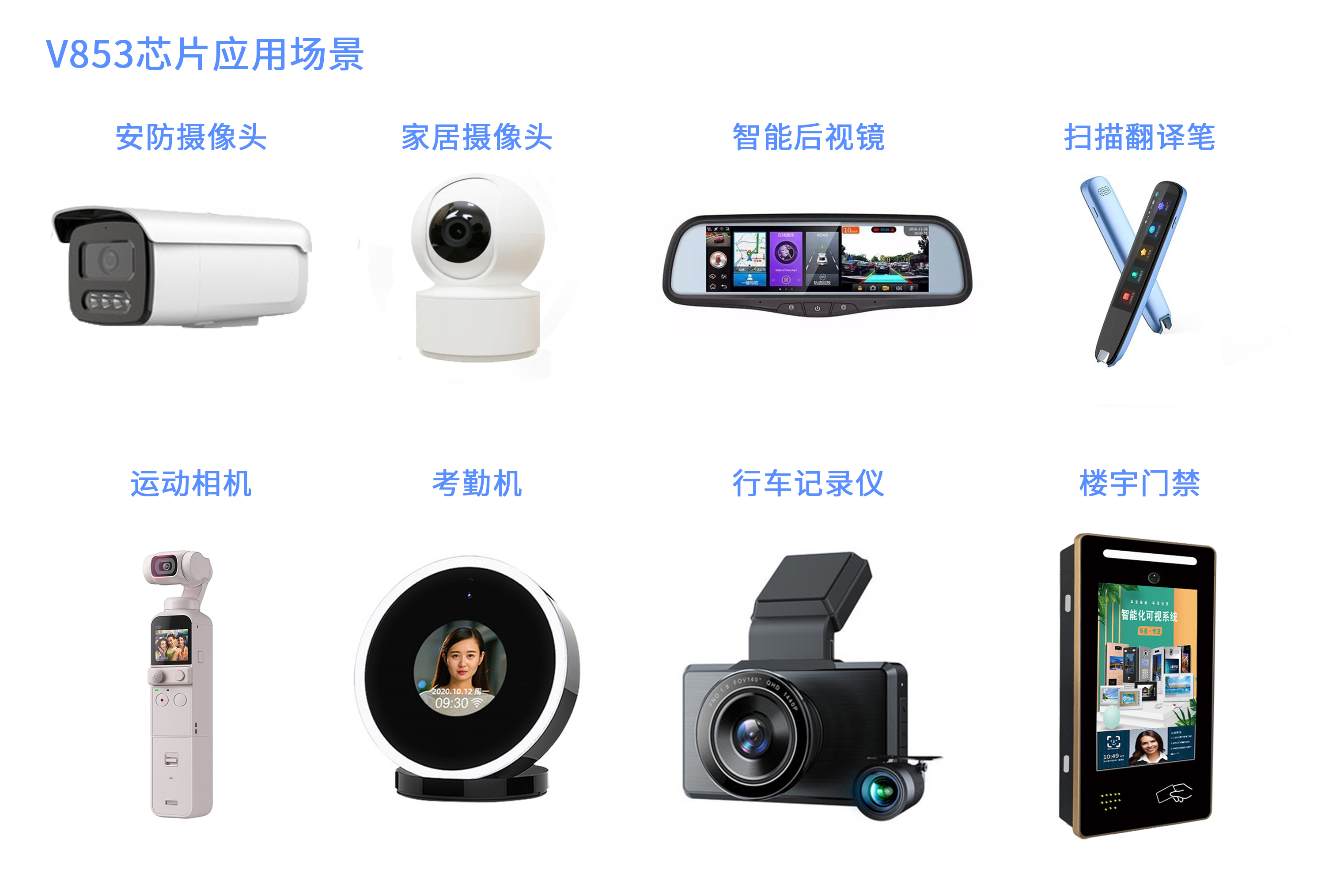

V853 Application

image-20220601152708483

Chip block diagram

D1-H芯片框图

Specifications

CPU

Arm Cortex-A7@1GHz
32 KB I-cache, 32 KB D-cache
128 KB L2 cache
RISC-V E907@600MHz
16 KB I-cache, 16 KB D-cache

NPU

Maximum perormance up to 1 Tops
Emdedded 128KB internal buffer
Supports deep learning frameworks: TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, and so on

Memory

16-bit DDR3/DDR3L SDRAM, supporting maximum capacity of 1GB
SD3.0/eMMC 5.1 interface
Supports SPI Nor/SPI Nand Flash

Video Engine

Video encoder
    - H.264/H.265 up to 4K@15fps or 5M@25fps
     - JPEG up tp 1080p@60fps

Video decoder
    - Supports H.264 BP/MP/HP, JPEG
    - Real-time multiple streams H.264 encoding capability: 5M@25fps
    - JPEG snapshot performance of 1080P@60fps independently

Display Engine

Allwinner SmartColor post processing for an excellent display experience
Supports 2 video channels and 1 UI channel
Supports G2D hardware accelerator including rotate, mixer, scaler functionns

Video Input

ISP
    - Maxumum performance of 5M@30fps and maximum resolution of 3072 * 1772
    - Adjustable 3A functions (AE, AWB, AF), and 3A parameters are adjustable
    - Provides ISP tuning tools for the PC
VIPP
    - Four VIPP YUV422 or YUV420 outputs
    - Maximum performance of 5M@30fps, maximum resolution of 3072 * 1772
8-/10-/12-/16-bit parallel CSI interface
    - Supports digital camera (DC), BT.601, BT.656, BT.1120 protocol
    - Maximum video capture resolution up to 5M@30fps
4-lane MIPI CSI interface
    - Supports DOL WDR mode and splitting into 2*2-lane MIPI CSI
    - Supperts 4-ch VC de-interleaver function
    - Maximum video caputure resolution up to 5M@30fps

Video Out

RGB LCD output interface up to 1920 x 1080@60fps
4-lane MIPI DSI interface up to 1920 x 1080@60fps

Audio

1 DAC and 2 ADCs
Analog audio interfaces: MICIN1P/N, MICIN2P/N, LINEOUTRP/N
Digital audio interfaces: I2S/PCM *2 , DMIC

Security System

AES, DES, 3DES encryption and decryption algorithms
RSA/ECC signature verigication algorithm
MD5/SHA and HMAC tamper proofing
PRNG/TRRNG hardware random number generator
Integrated 2Kbits OTP storage space

Connectivity

USB2.0 DRD, SDIO 3.0, SPI *4, UART * 4, TWI * 5, WIEGAND
PWM (12-ch), GPADC (4-ch)
10/100/1000M EMAC with RMII and RGMII interfaces

Package

LFBGA 318, 12mm * 12 mm, 0.5mm ball pitch

Chip process

22nm
